Cleaning & Calibrating
Screening Machine SM
Specialised in Coarse Cleaning of Dry Products. The SM Series screening machines perform coarse and pre-cleaning of dry, grained and free-flowing products.
Core Technology
- particularly suitable for use in industrial grain processing
- can be adjusted for the most varied of products
- up to 120 t/h coarse cleaning capacity

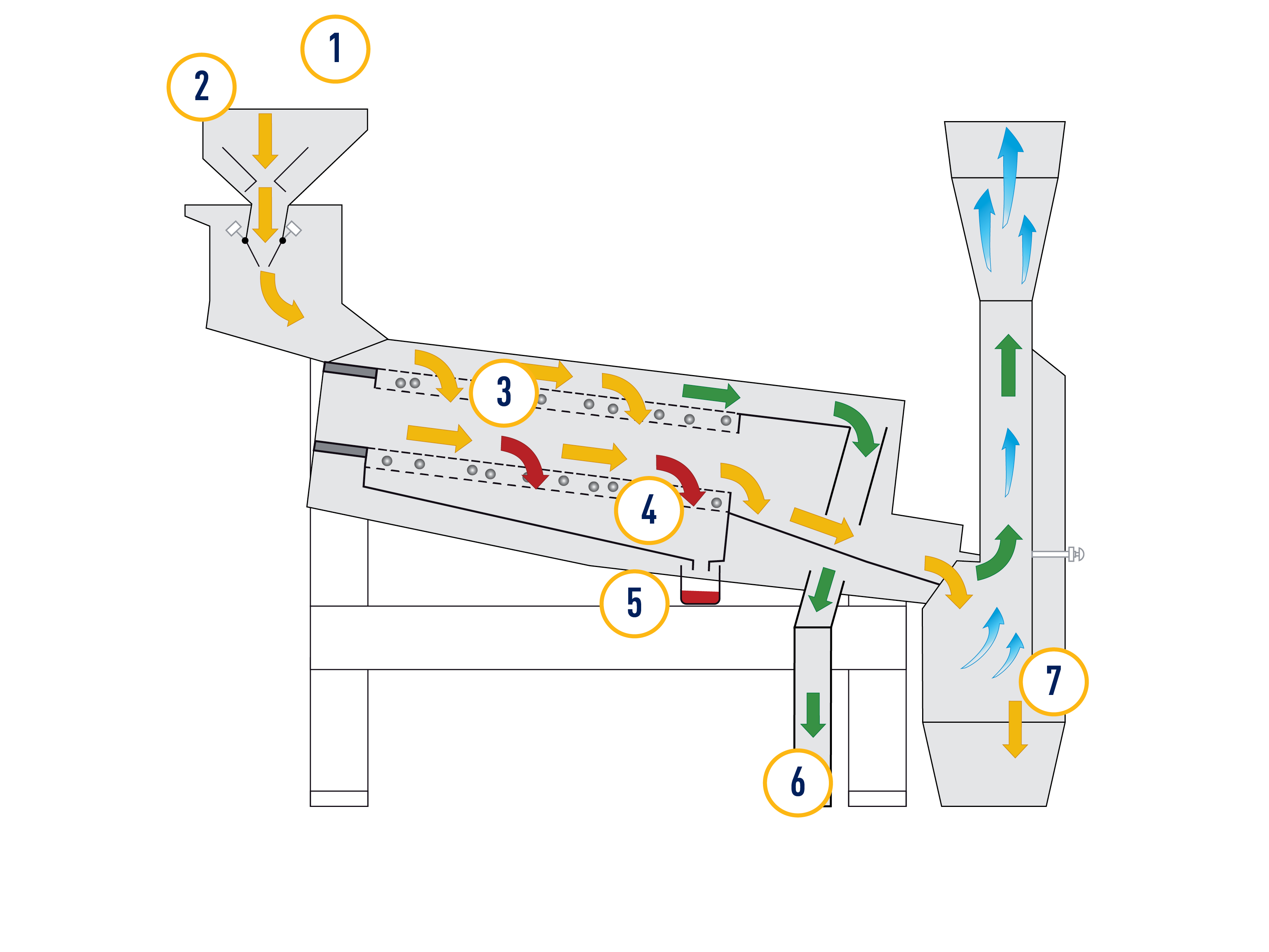

Main features
- Connection intake aspiration
- Inlet
- Upper screen impurity seperator
- Lower screen impurity seperator
- Outlet lower screen
- Outlet upper screen - bilateral
- Aspiration channel with outlet for cleaned product
Specifications
Advantages
- Suitable for various products due to extensive setting options
- High standard of cleaning
- Simple and quick changing of screens
- Stroke, angle of throw and screen inclination can be adjusted
- Highly effective sieve cleaning using ball cleaning system
- Reliable and low-maintenance
Standard features
- Bolted frame made of galvanized sheet steel
- Set of screens for screening diagram
- Rubber balls for the screen cleaning
- Drive unit with two imbalance motors
- Available with two or four screen levels
Cleaning & Calibrating
Discover the
Screening Machine SM
SM 15
coarse cleaning: up to 50 t/h
Technical Data
Size (length x width):
1535 x 1843

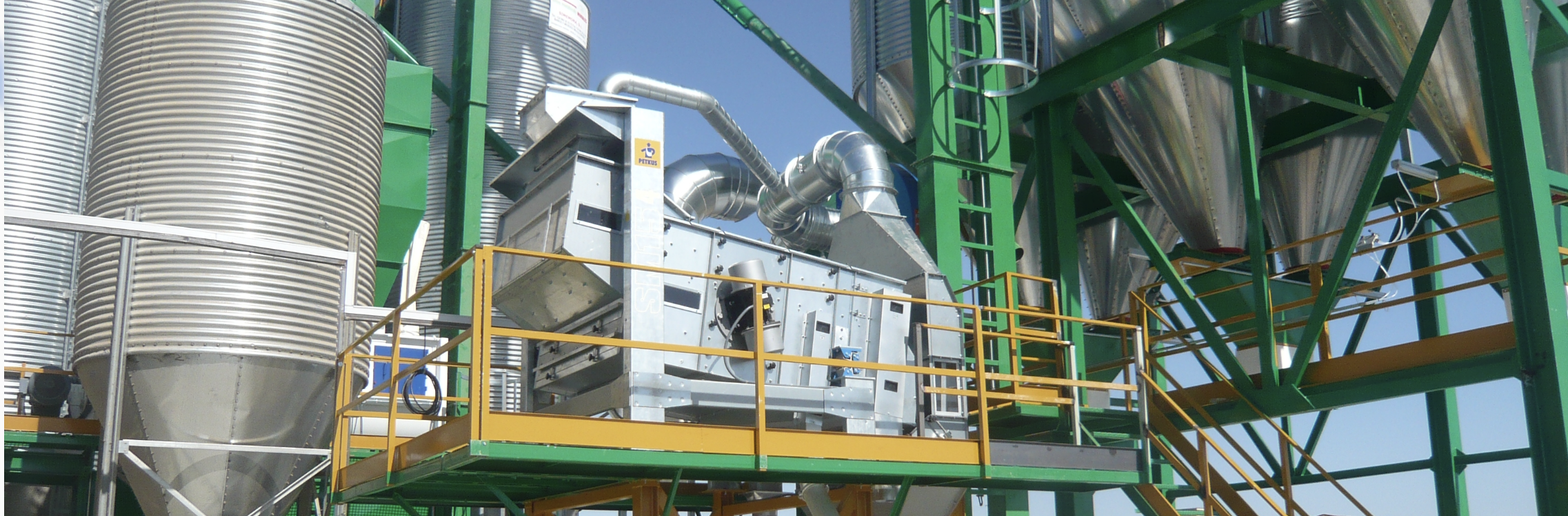

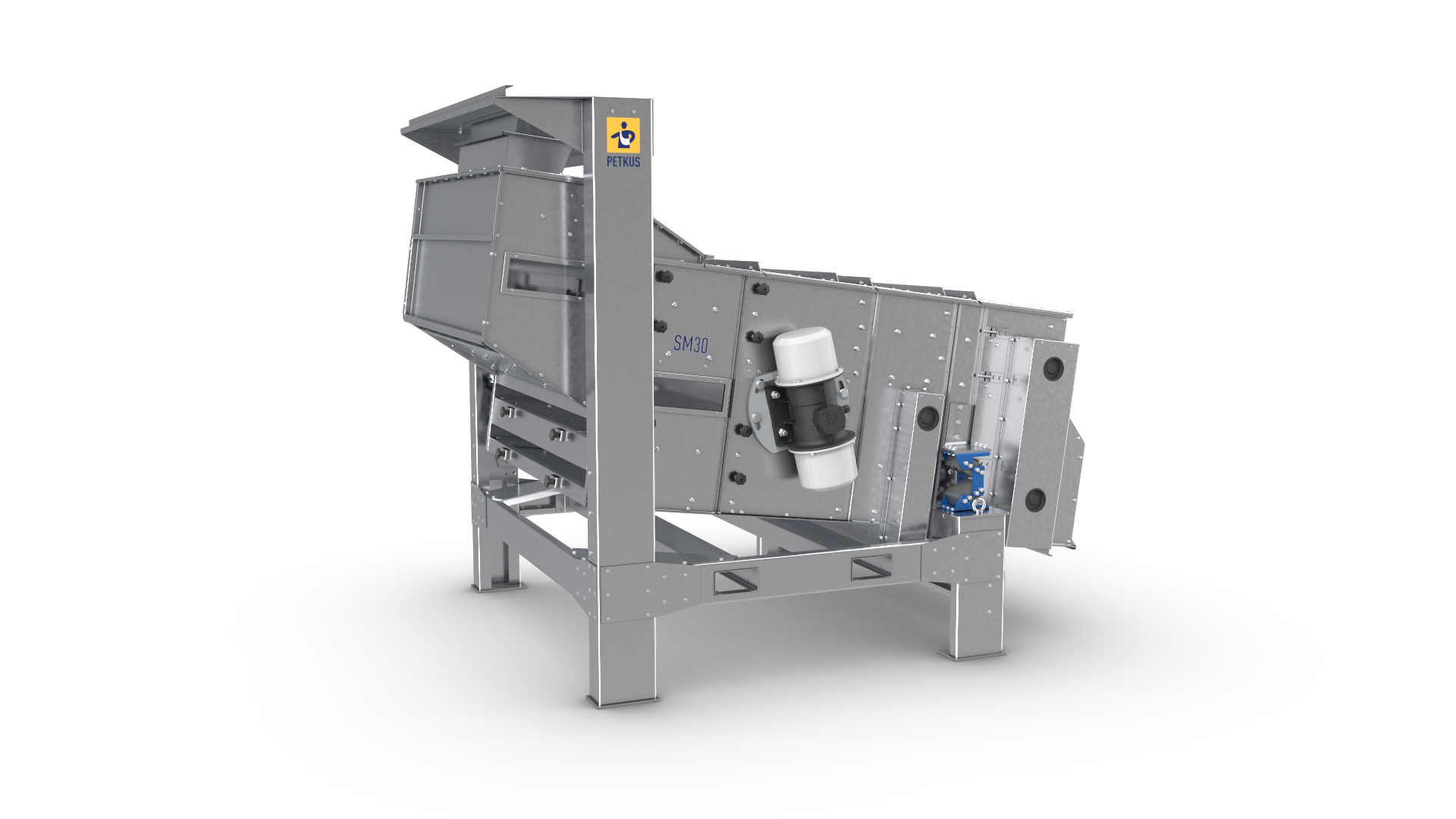

SM 30
coarse cleaning: up to 120 t/h
Technical Data
Size (length x width):
1535 x 1843
