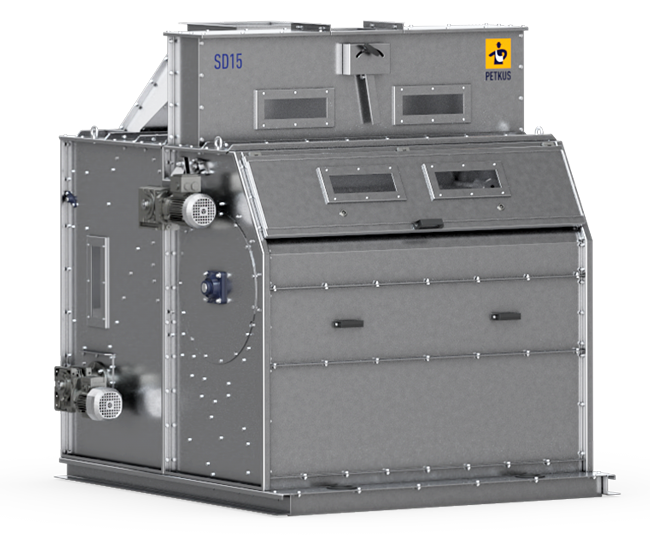

Drum Cleaner SD
The Rotary Drum Cleaner SD thoroughly and reliably separates foreign material and coarse impurities such as stones and clods from fine- and coarse-grained products.
Core Technology
- suitable for moist, severely contaminated raw products
- essential for further processing and storage
- up to 300 t/h coarse cleaning capacity

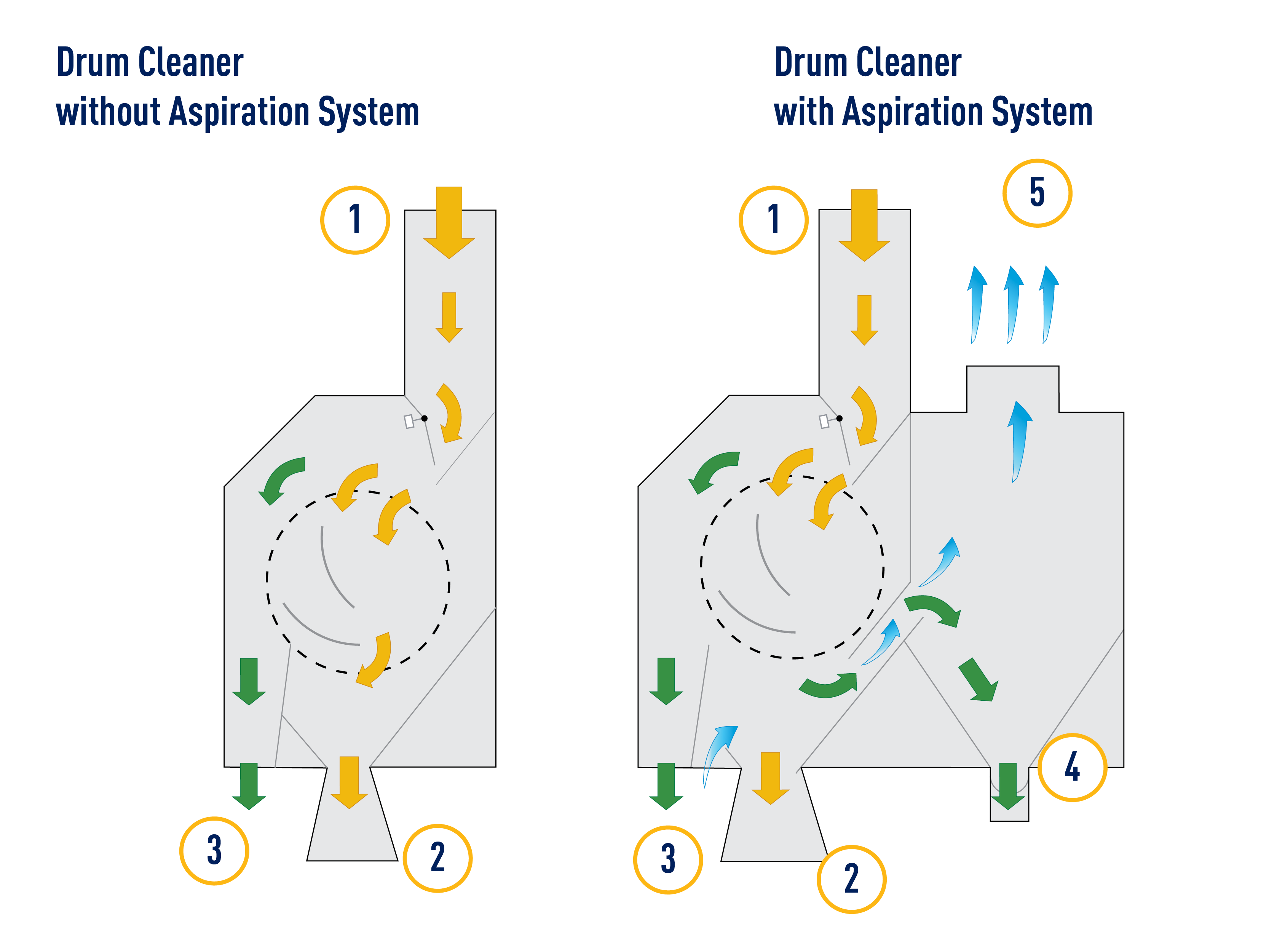

Main features
- Inlet hopper
- Cleaned product
- Outlet large product
- Outlet small product
- Connection pipe for Ventilator and Cyclone for waste air
Specifications
Advantages
- Highly suitable for the cleaning of products which are in damp or soiled condition
- High throughput performance
- Relief of the following cleaners and dryers
- Reliable and low-maintenance
Standard Features
- Bolted frame made of galvanized sheet steel
- Screen drum with the perforation 25 mm x 50 mm for pulses and corn or with the perforation 25 mm x 25 mm for cereals
- Aspiration
- Drive unit with electric motor
Cleaning & Calibrating
Discover the
Drum Cleaner SD

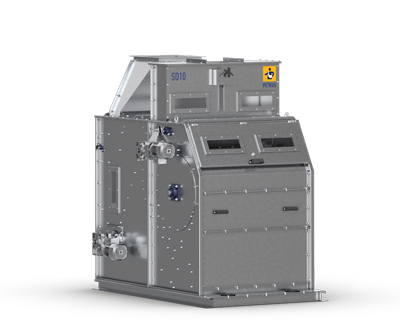

SD10
Technical Data
Size (length x width):
1815 x 1600 x 1910

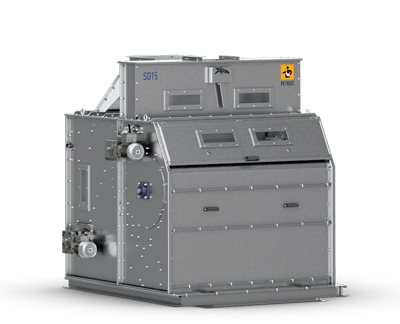

SD15
Technical Data
Size (length x width):
1815x 2100 x 19

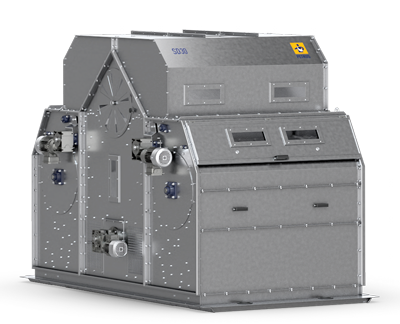

SD30
Technical Data
Size (length x width):
2930 x 2100 x 2070
Cleaning & Calibrating
Discover all

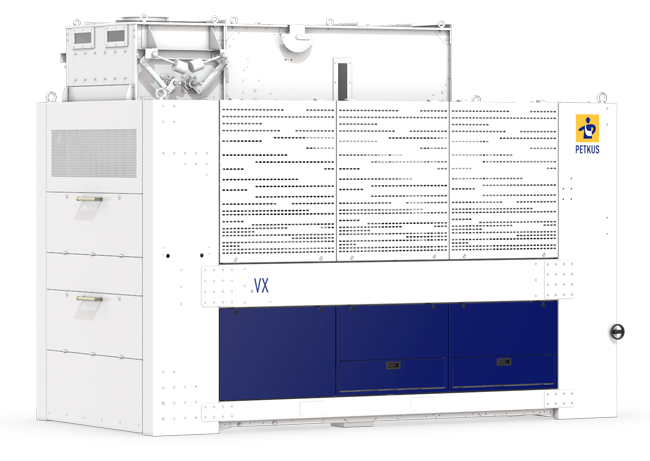

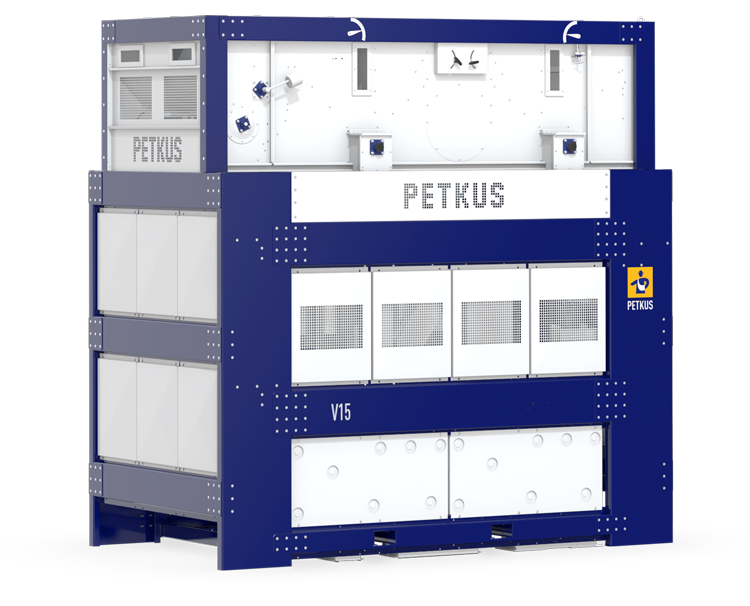

Pre-Cleaners
