Cleaning & Calibrating

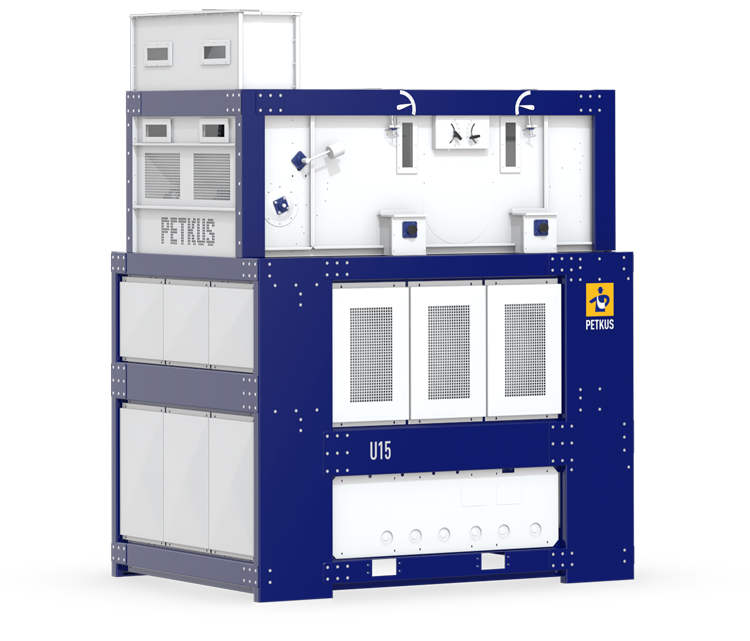

Cleaner U
The classic universal cleaner U15 is a robust, dependable cleaning machine for variable use in the mid to higher level capacity range.
Core Technology
- Suitable for pre-, intensive and seed cleaning
- Double channel aspiration for uniform quality
- Quiet, low-vibration operation
- Easy adjustment of the air flow in the air sifter
- Quick sampling from the product stream
- Interchangeable standard screens
- Central lubrication system

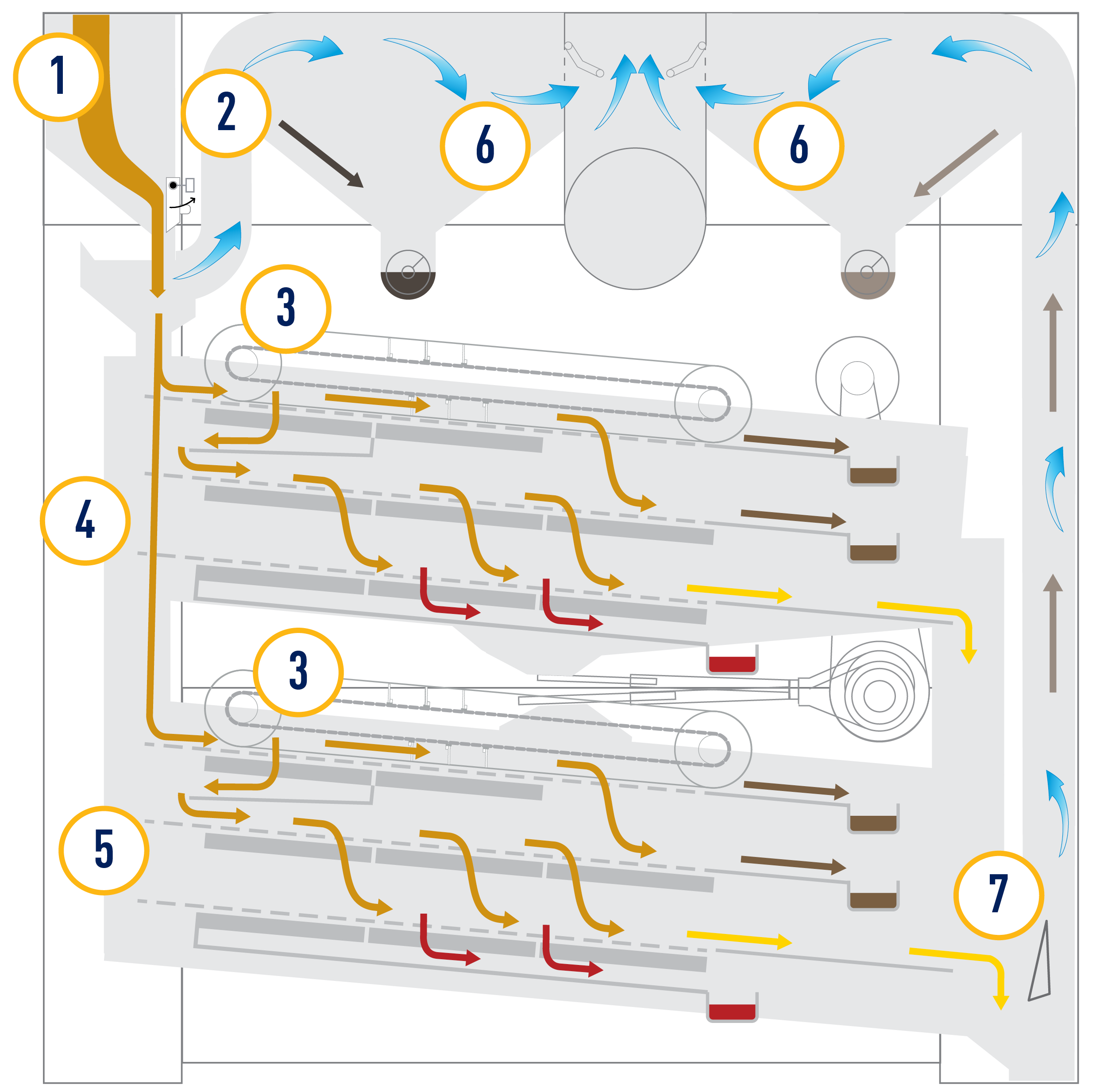

Main features
- Machine inlet
- Pre-sifting channel
- Screen cleaning system
- Screen layers in the upper screen shoe
- Screen layers in the lower screen shoe
- Expansion chamber for pre- and main sifting channel
- Main sifting channel
Specifications
Advantages
- Very high flexibility due to variable material flow dividers and discharge chambers
- Simple and quick changing for various applications due to the modular design
- High standard of cleaning and quality
- Highly effective sieve cleaning using ball cleaning system
- Also suitable for not free flowing products and sections with high debris
Standard Features
- Bolted frame made of painted sheet steel
- Screen compartment, pre- and final aspiration made of galvanized sheet steel
- The set of screens according to screening diagram
- Double channel sifter for optimal cleaning quality
- Left or right version possible

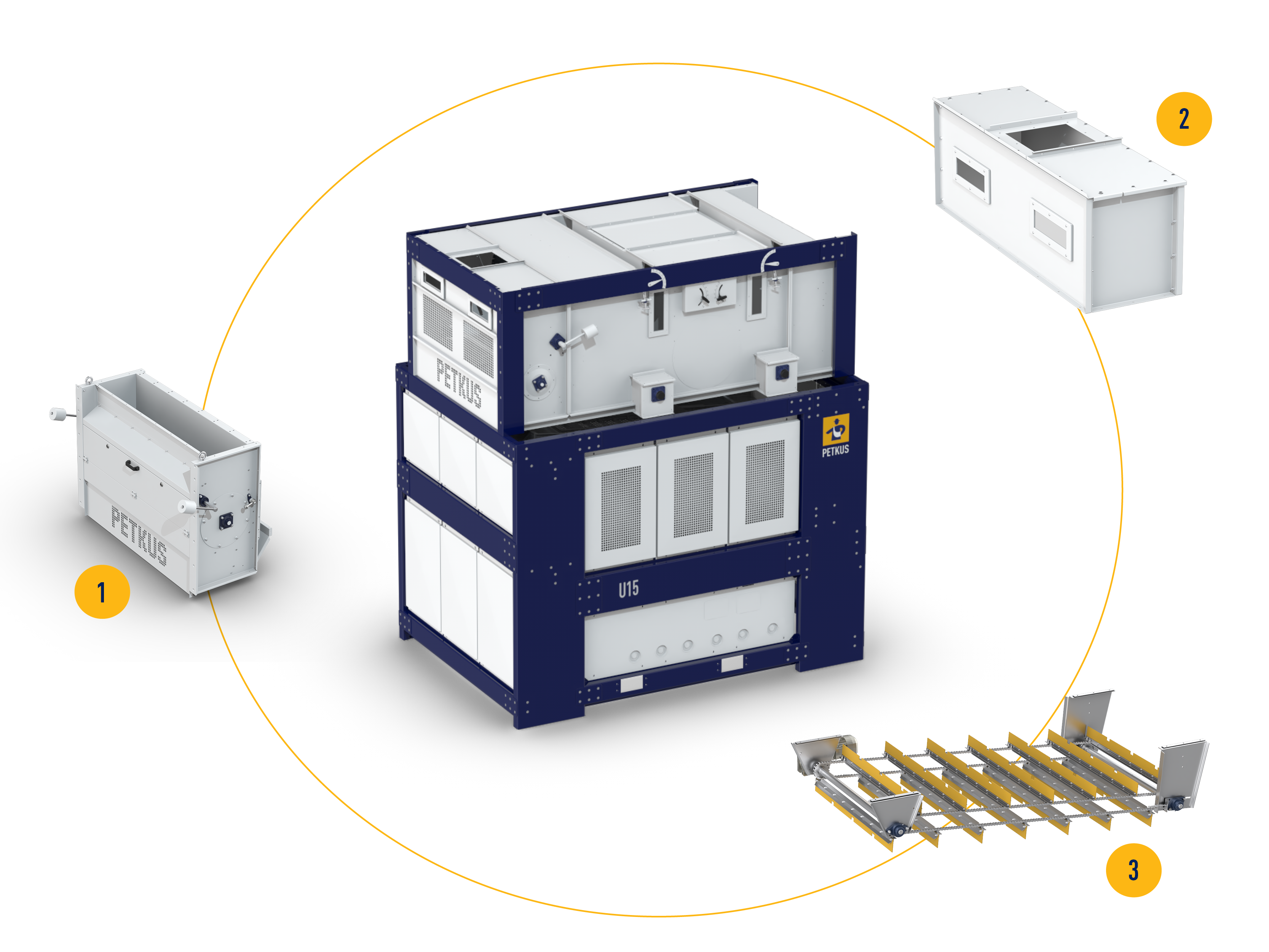

Options (Image)
- Pin roller feeder
- Infeed hopper
- Scraper Chain
Special Feature Details
- Excellent Cleaning with Double Channel Air Sifter
Precise separation and very uniform quality at any throughput rate - Homogeneous Product Flow
Unique, rotating scraper chain for continuous and homogeneous product flow - Complete Machine Emptying
Eased cleaning of the screen compartments due to open design and removeable ball compartment
