Cleaning & Calibrating

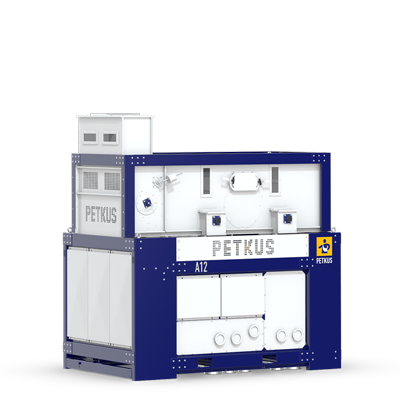

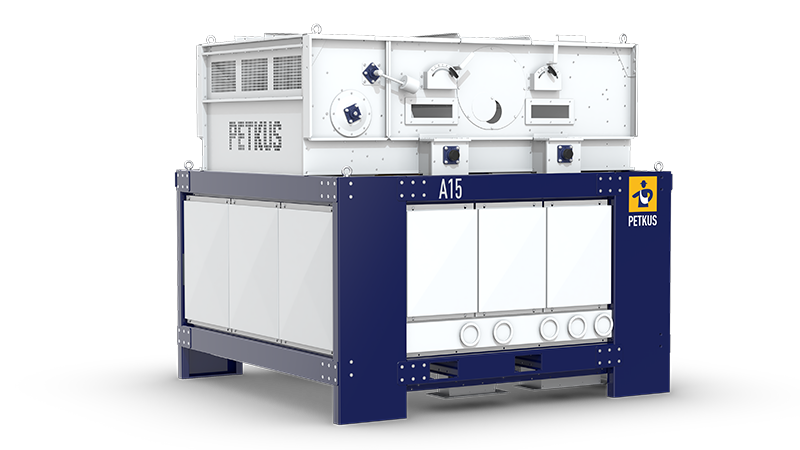

Cleaner A

Suitable for pre-, intensive and seed cleaning the classic agri Cleaner A is a compact, robust and reliable cleaning machine for variable use for small and medium capacities

Core Technology

Double channel aspiration for uniform quality
High cleaning performance for different quality levels
Compact Design
Suitable for various cleaning processes due to extensive setting options
Highly effective screen through ball cleaning system and scraper chain
Also suitable for poorly flowing products and heavily contaminated batches

Capacity

0.8 t/h

40 t/h

Request Datasheet Contact sales

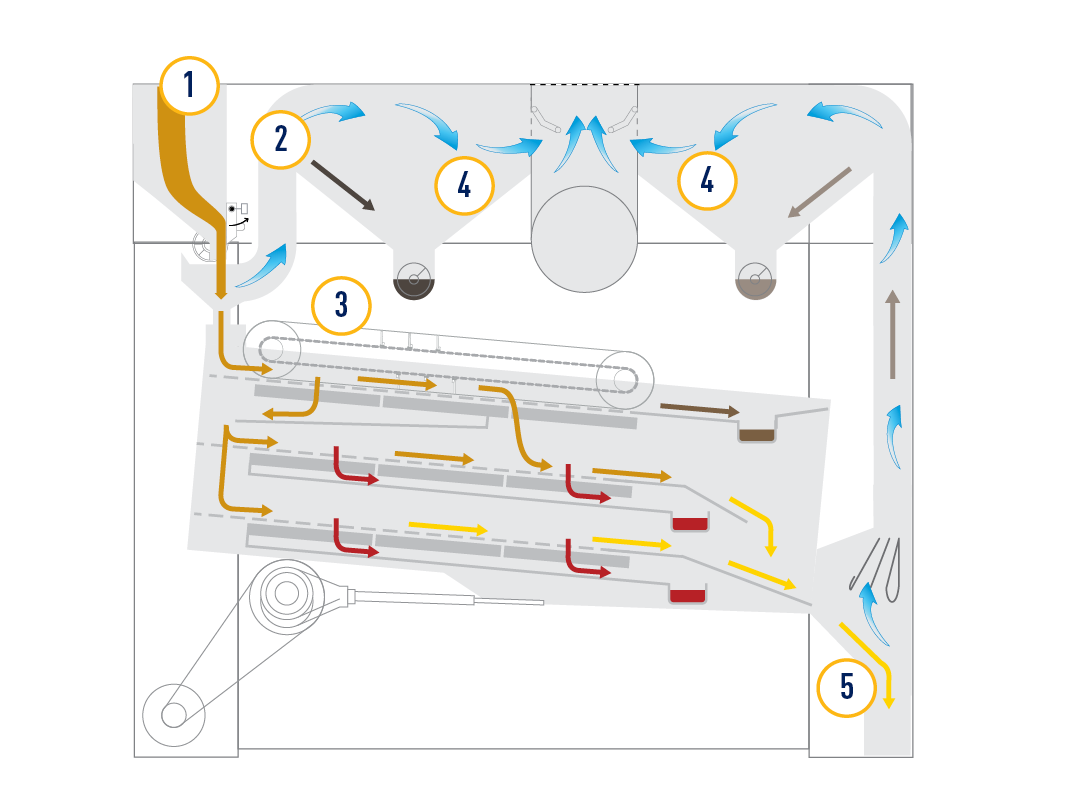

Main features

Machine Inlet
Pre-sifting channel
Screen cleaning system
Expansion chamber for pre-and main sifting channel
Main sifting channel

‍

Specifications

Bolted frame made of painted sheet steel
Screen compartment, pre- and final aspiration made of galvanized sheet steel
Unique, rotating scraper chain for continuous and homogeneous product flow
Drive units with gear motors
Eased cleaning of the screen compartments due to open design and removeable ball compartments

Options

Left or right version possible
Aspiration connection on top or opposite to operating side

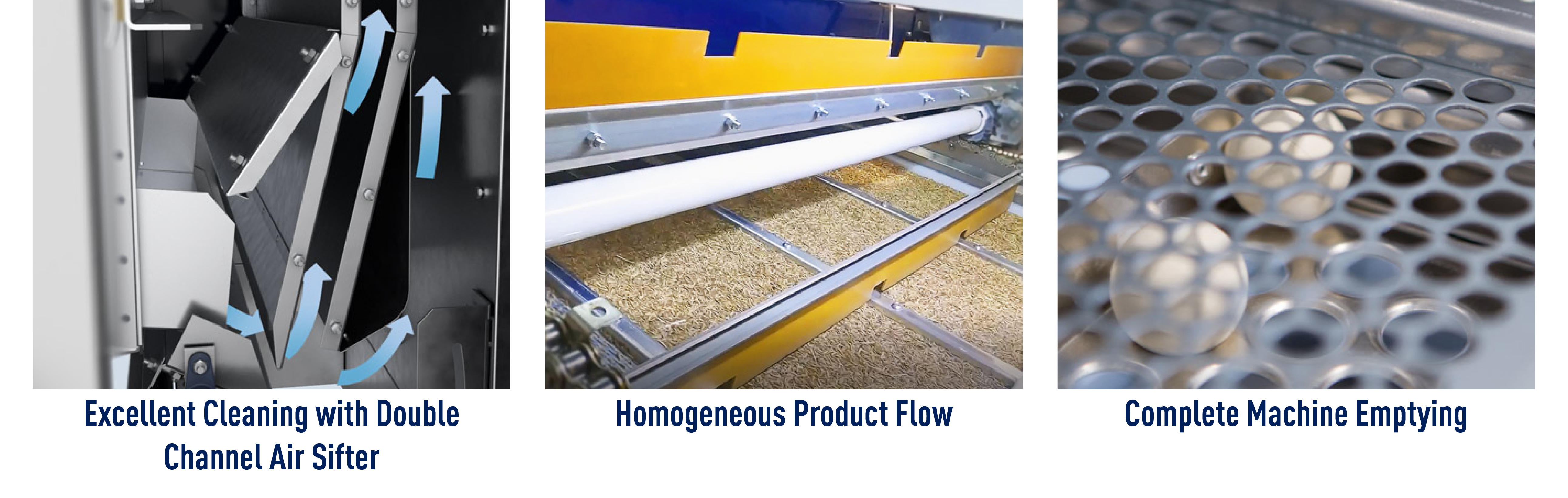

Special Feature Details

Excellent Cleaning with Double Channel Air Sifter
Precise separation and very uniform quality at any throughput rate
Homogeneous Product Flow
Unique, rotating scraper chain for continuous and homogeneous product flow
Complete Machine Emptying
Eased cleaning of the screen compartments due to open design and removeable ball compartment
