Drying
Fluidized Bed Dryer DF
PETKUS Fluidized Bed Dryer DF for gentle drying. Compact designed air flow offers optimal product flow and high drying efficiency.
Core Technology
- Gently and flexible drying after chemical treatment.
- Optimal residual moisture levels

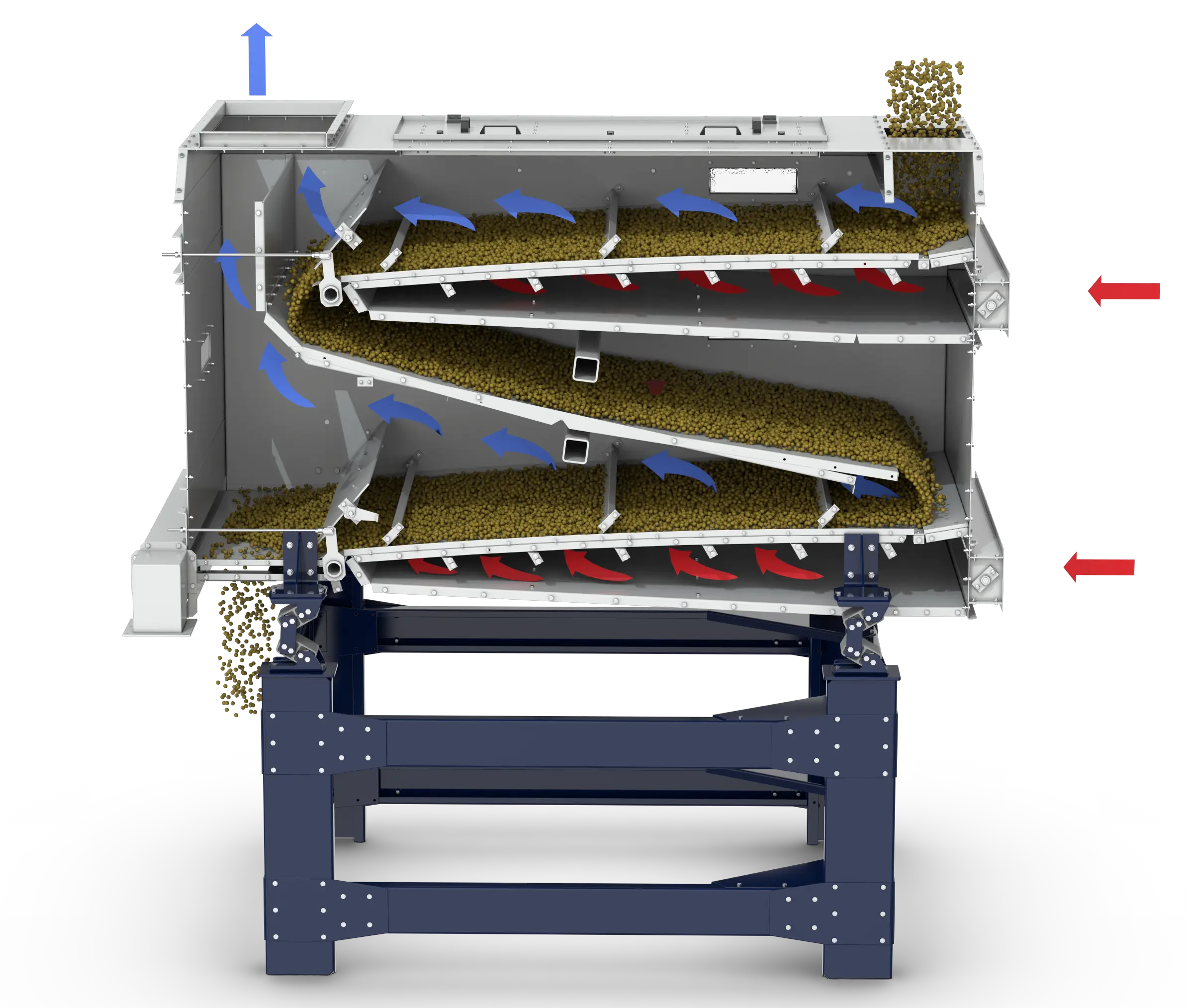

- Vibrating fluidised bed principle with warm air flow
- Absorbing moisture as water evaporates from the kernel surface
Main features
- Preserves germination capacity & improves flowability
- Flexible, efficient & gentle drying
- Compact design and small footprint due to z-shape drying loop
- Continuous, batch or semi-batch loading possible
- Separate temperature controls for screen levels possible
- Counterbalance motors for homogenous infeed
- Variable product flow speed
- Temperature sensors for continuous monitoring and control
- Reduced abrasion and improved Heubach values
- Available with screens or Conidur® sheets
Specifications
- Perpendicular Air Flow
- Product flow "Z-Form"
Drying
Discover the
Fluidized Bed Dryer DF
DF90
up to 10 t/h
Technical Data
Size (length x width):
2570 x 1260
Special fuction:
100 kg/h water removal based on 50° C
DF120
up to 15 t/h
Technical Data
Size (length x width):
2570 x 1560
Special fuction:
150 kg/h water removal based on 50° C
DF150
up to 20 t/h
Technical Data
Size (length x width):
2570 x 1860
Special fuction:
200 kg/h water removal based on 50° C
Drying
Discover all
Fluidised Bed Dryer
Comprehensive seed storage solutions for long-term preservation.
