Ear Corn Dryer DHS
The PETKUS Corncob Dryer DHS is a system for drying husked corncobs at harvest moisture levels. Each drying chamber in the single-pass reverse process is equipped with its own burner and fan.
Core Technology
Individual Control of Each Drying Chamber

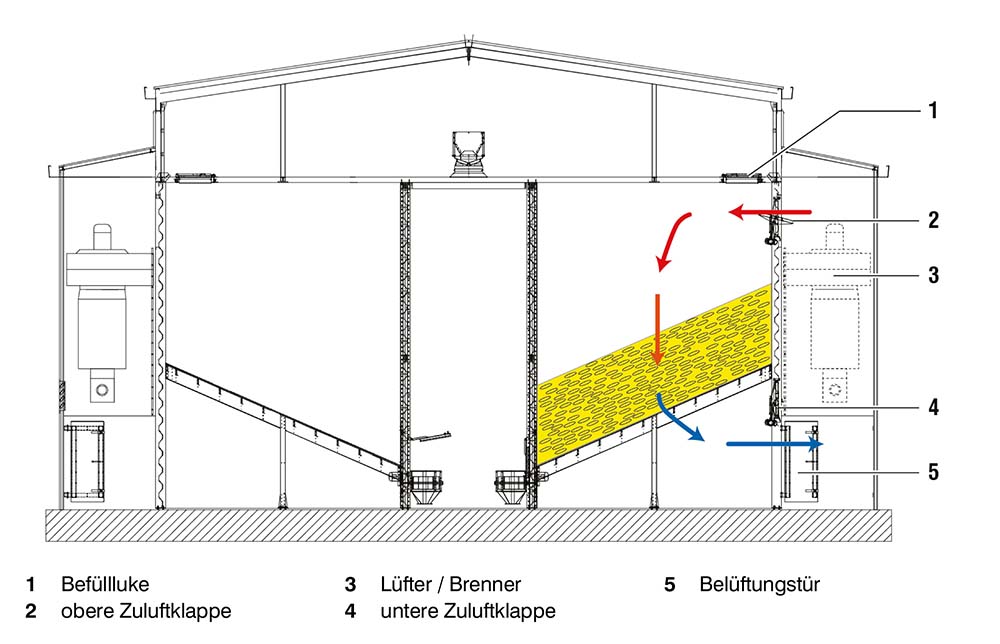

In two opposite rows of drying chambers, the corn cobs are gently and evenly dried by using upper and lower air infeed. Each chamber can be monitored and controlled independently.
Main features

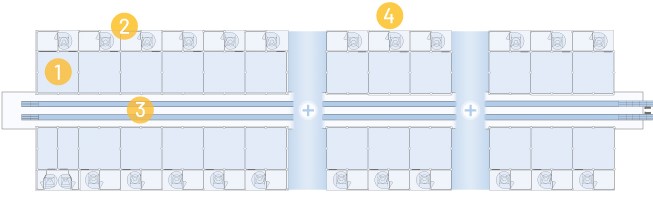

A Modular Chamber System Tailored to your Requirements
- Drying chambers
with capacities between 20 and 80 t, half-chambers possible - Hot air generation
with gas or oil burner - Chamber discharge
in the centre of the dryer house - Modular construction
12, 18 or 24 chambers
Individual Control of Each Drying Chamber
In two opposite rows of drying chambers, the corn cobs are gently and evenly dried by using upper and lower air infeed. Each chamber can be monitored and controlled independently.
Gentle filling of chambers
Belt conveyors gently transport the corncobs into the drying chambers.
Central Monitoring and Control System
Access visualisations and detailed reports of the process from your PC or touch panel.
Chamber Discharge
Mechanical or electric discharge, depending on requirements.
