Drying
Continuous Flow Dryer DD, DDU, DW, DWU
Gentle, effective and economical drying with energy-saving options. Modular drying, cooling and storage sections.
Core Technology
- Capacity increased by up to 12% through conically shaped air ducts
- Automatically controlled drying process: control software with automated process control and moisture monitoring system
- Low energy and fuel consumption through insulation, heat recovery, conically shaped air ducts and axial fans
- Universally applicable
- Modular system consisting of drying, cooling and storage sections
Main features
A Dryer Engineered to Excellence

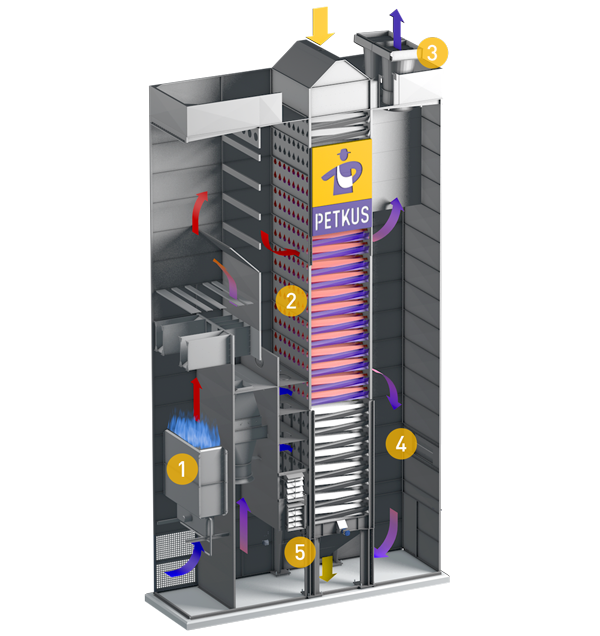

- Direct or indirect hot air generation with gas or oil burner
- Gentle, uniform drying in the dryer column
- Axial fans with louvre dampers
- Recirculation of air
- Interval emptying with pneumatically operated discharge
Specifications
Uniform Drying

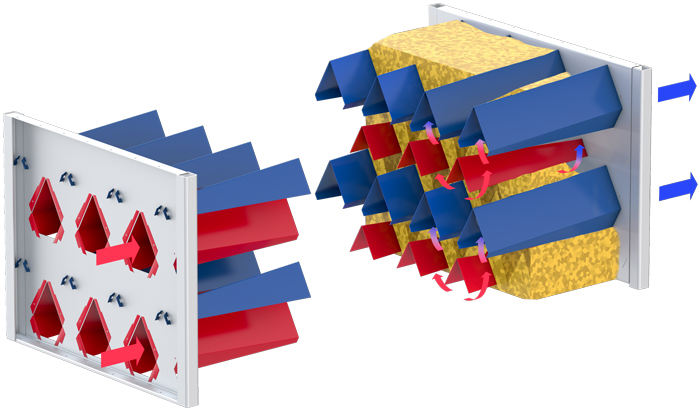

Conical channels ensure that the product moves in zigzag-motion and is therefore perfectly mixed and evenly dried. Due to the alternating contact with warm and cool air, the product is always at optimal temperature.
Drying
Discover the
Continuous Flow Dryer DD, DDU, DW, DWU
Series 15
Technical Data
Size (length x width):
Type DD: 6020 x 1570 | Type DDU: 7070 x 1570 | Type DW: 6020 x 1570 | Type DWU: 6020 x 1570
Series 25
Technical Data
Size (length x width):
Type DD: 7290 x 2440 | Type DDU: 8340 x 2440 | Type DW: 8160 x 2440 | Type DWU: 8160 x 2440
Series 40
Technical Data
Size (length x width):
Type DD: 7290 x 3890 | Type DDU: 8340 x 3890 | Type DW: 8160 x 3890 | Type DWU: 8160 x 3890
Series 60
Drying
Discover all
Continuous Flow Dryers
Comprehensive seed storage solutions for long-term preservation.
