Cleaning & Calibrating

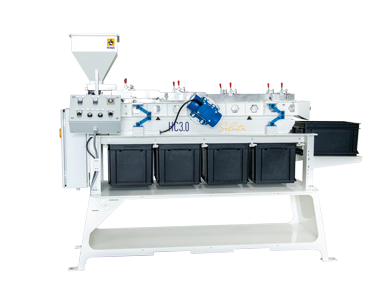

Calibrator HC

The HC Series is a new generation of calibration machines for a wide range of seeds. PETKUS Selecta HC calibration machines are the best in their class with an unbeatable precision on scaling seeds.

Core Technology

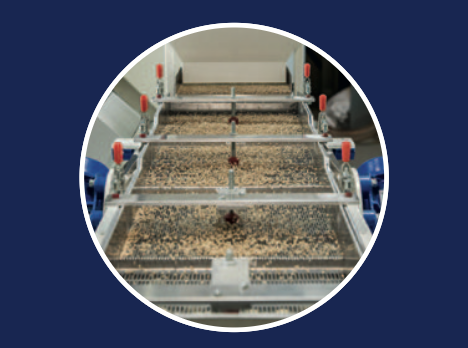

Unique movements of screen: oscillation in low and high speed intervals

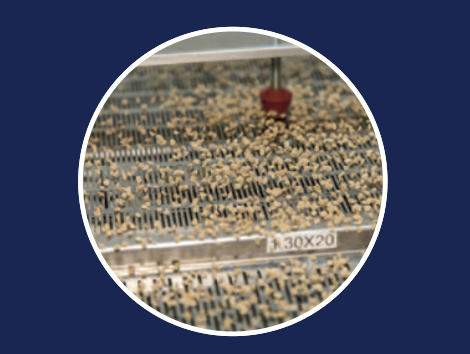

Low speed separation by the screens, high speed separation by elastic balls cleaning the screens
Light aluminium frame for easy handling and extra vibration
One of the quietest machines on the market
One compact frame

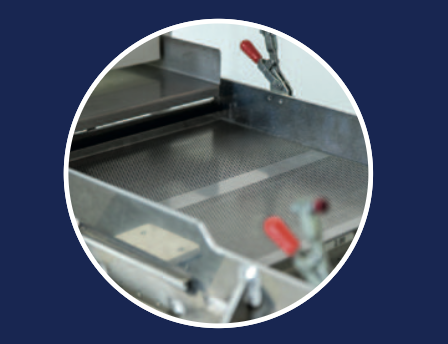

Fast changing of screens by clamps
Open construction for easy cleaning
Feeding by VIDOS vibrating feeder for a regular flow, with integrated continuously variable speed adjustment for very precise dosing

Capacity

15 kg/h

120 kg/h

Request Datasheet Contact sales

Unique Screen Motion

Quiet & Compact

Frameless Screens

Main features

Storage rack for 40 screens in the frame
Sensor on feeding hopper to stop when the feeding hopper is empty
Larger feeding hopper in combination with bigger collecting boxes
Pre-suction unit before the first sieve to remove light impurities to keep the screens clean and / or to prevent dust in the working area
HC 12.0: Units can be connected up to a total of 12 screens
