Multi Coater CM
PETKUS MultiCoater offer flexibility along the entire seed treatment processing line: Combining up to 8 different liquid dosing feeds and up to 4 different powder dosing feeds, even the most complex recipes can easily be realized using sequential or simultaneous application. The additional integrated drying process in the MultiCoater CM makes PETKUS coating technology the most professional in the market.
Core Technology
- Intuitive and flexible process control
- Air cushion technology enables a unique air management during treatment
- Easy maintenance and accessibility by 360° access to the mixing cylinder
Main features
Coating and Drying in One single unit
- Intuitive and flexible process management via the PETKUS software incl. full order/batch traceability
- Air cushion technology supporting gentle and effective seed motion with reduced dust values
- Multifunctional recipe management by setting individual machine parameter per recipe and/or process step to enable any treatment purpose:
- Seed treatment
- Film coating
- Encrustation
- Pelleting

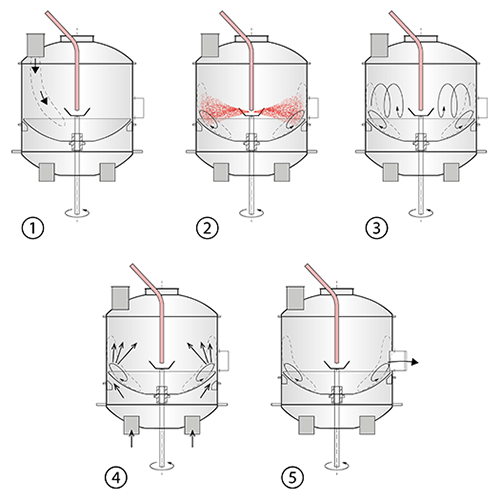

Multifunctional process and recipe managment
- Filling - batch size volume according to your production order.
- Application - dosing according to your recipe: liquid and solid components can be dosed in one-step or sequentially supporting multi-layering and 100 percent surface coating.
- Mixing – gentle seed movement through the homogenies air cushion.
- Drying - conditioning of the applied liquid(s) with controlled volume of process air, rotor and fan speed to realize any process scenario.
- Discharge - edge free discharge hopper
Recipe programming allows individualization of your recipe by flexible sequence of step 2 to 4.
Discover the

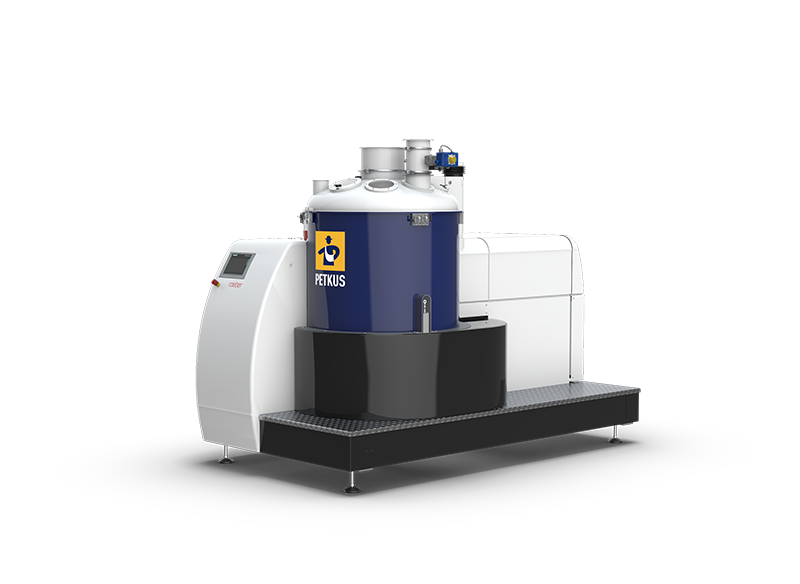

Multi Coater CM

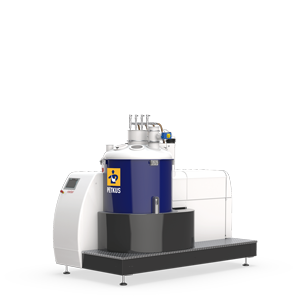

up to 1.8 t/h
up to 8 t/h
up to 25 t/h
Discover more
Batch Treaters
and PETKUS variety of technological solutions to enhance your seed.
