Profile Wall Silos as a Flexible Storage System
Profile wall silos are a space-saving, stable and economical storage system and offer compact, flexible solutions in terms of layout and storage volume.
- Modular system for limited sapce
- Suitable for indoor and outdoor installation
Single cell with up to 1280 m³ capacity
Compact Modular Design
The silo cells in modular design can be used as a silo battery in a row or in a block with different heights and capacities.
- Complete solution with machinery house
- Outlet hopper for single cell and 1/2 cell
- Wall elements made of hot-dip galvanised sheet steel or stainless steel plate
- Steel construction, substructure and cladding
- Conveyor technology for gentle product transport
Optimised Emptying
Profile depth of 160 mm, an angle of 49 degrees and countersunk screws prevent the adherence of product residues
Intelligent Use of Space

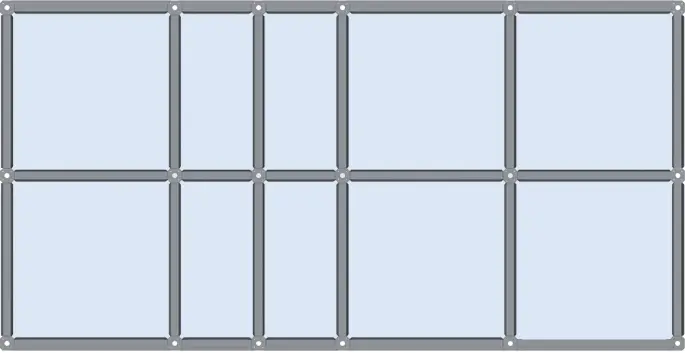

A variety of possible cell combinations for individual, precise adaptation to your specific requirements
Discharge Hopper Matching the Product
Continuous flow during silo emptying due to rounded hoppers with a side inclination of 45 or 60 degrees or multi hoppers
Increased Storage Capacity by 25% *
Flexible cell sizes - single cell or half cell - allow optimal use of the given floor space. Without internal struts, silo cells with a maximum volume of 320 m³, up to 4 metres wall length and 25 metres height are possible. Larger cells with a capacity of up to 1280 m³ can be realised with internal struts.
*in comparison to the round silo
